Planet Power 6  Mobile Welfare Unit 4-6 person Rest Area

Key Features at a glance…

The smallest of our anti-vandal mobile welfare units, this HSE compliant welfare unit exceeds the transient site welfare criteria for staff on site and is V.C.A. approved as a trailer.

It is compact, lightweight, and easy for us to tow with no special transport required. It’s well thought out anti-vandal design incorporates high-security features such as recessed door handles and steel shuttered windows. Its bright white, easy wipe clean GRP interior can comfortably accommodate 4-6 people. It can be supplied with “screw in” lifting eyes if required.

Width 2300mm

Length 3655 mm

Length (including drawbar) 4920 mm

Height (on wheels) 2900 mm

Height (on ground) 2500 mm

Rest area comprising of

  • Bench seating for 4-6 people around a fixed table.
  • Generator powered microwave, kettle and wall heaters, (as with all of our units, the generator has auto shut down if left running)
  • Auxiliary battery powered heating, reinforcing the Planet Power eco credentials
  • The sink in the rest area has NO hand washing dispensers above (this encourages hand washing in the toilet cubicle to the rear- an area which is away from any food and also the area which we clean each week)
  • Solar charged batteries providing power to interior lights, heating
  • Sliding window c/w internal locking security shutters
  • Solar powered phone charging point
  • Carbon monoxide alarm
  • GRP interior panels, white wipe clean finish
  • Frame mounted electrical compliance/test certificate, generator and carbon monoxide alarm service history record
  • Small notice/wipe board
  • Easy change over to “plug in” external mains power

Drying and generator room

  • Drying shelf/glove and boot rack over generator
  • Generator powered wall mounted heater
  • Diesel/battery heater outlet assisting drying without the generator running
  • Substantial coat hooks
  • Low-level fuel filling point c/w easy view fuel gauge next to British manufactured generator
  • Wall mounted smoke alarm

Toilet and cubicle

  • Full forearm sink with generator powered hot-wash above
  • Foot pedal operated cold-wash
  • Movement activated interior light
  • Generator powered interior light
  • Toilet with generous 28 Gallon holding tank

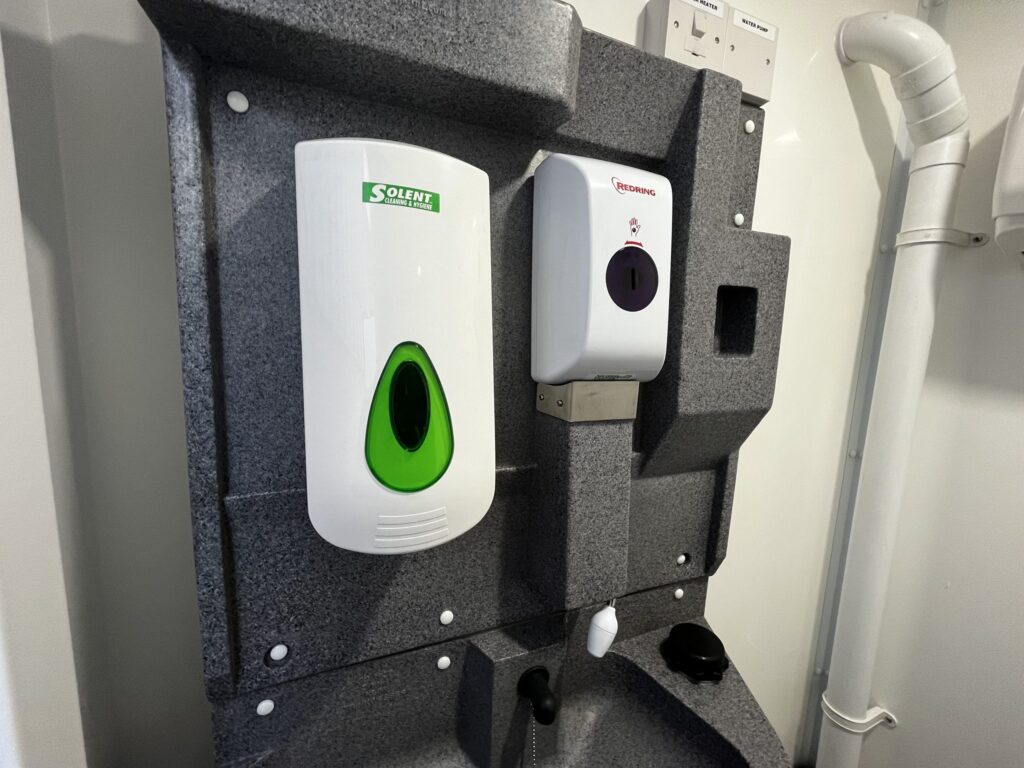

  • Wall mounted soap dispenser
  • Wall mounted, lockable toilet roll dispenser c/w 150metre long, jumbo toilet roll
  • Wall mounted paper towel dispenser which is well stocked with soluble paper towels, a design which dissolves to a pulp in water once disposed of into the toilet bowl. This is our preferred option rather than using non-soluble green towels which block drains and are difficult for water companies to dispose of. They are also a much better option than an overflowing waste bin.

Other Details…

  • Very simple and familiar, hydraulic raise and lower operation
  • Internally operated Isolation switch for power to raise and lower
  • Doors will open over the height of the highest kerb if parked on the roadside
  • Screw in lifting eyes available upon request
  • Lockable security shroud lowers to cover towing gear once the unit is sited
  • Mechanical door stays with friction control to all personnel doors
  • Locking towing gear shroud
Dimensions (Click to enlarge)
